工作原理
液/固混合流體通過進料管分布于離心機轉鼓內，在離心力場作用下，通過濾片截留固相，濾出液相。持續進料，直至料滿，停止進料，如工藝需要時則對濾餅進行洗滌、提純，同時將洗滌液濾出。進一步脫液，直至達到分離要求。停機，開蓋，人工或吊袋將濾餅卸出，完成一次工作循環。
PSD為吊袋卸料形式。
Operating principle
Mixed solid and liquid fluids enters centrifuge drum via feed pipe. acting on the centrifugal position. Liquid-solid mixed fluid intercept the solid phase through the filter to filter out the liquid phase. Centrifuge Continues to feed until full. Then stop.
Solid cake is rinsed and purified when the process requires. And the rinsing liquid is filtered out meanwhile. Centrifuge further filter until the separation requirements are met.
Stop&open cover. manual or hanging bag to remove filter cake to complete a working cycle.

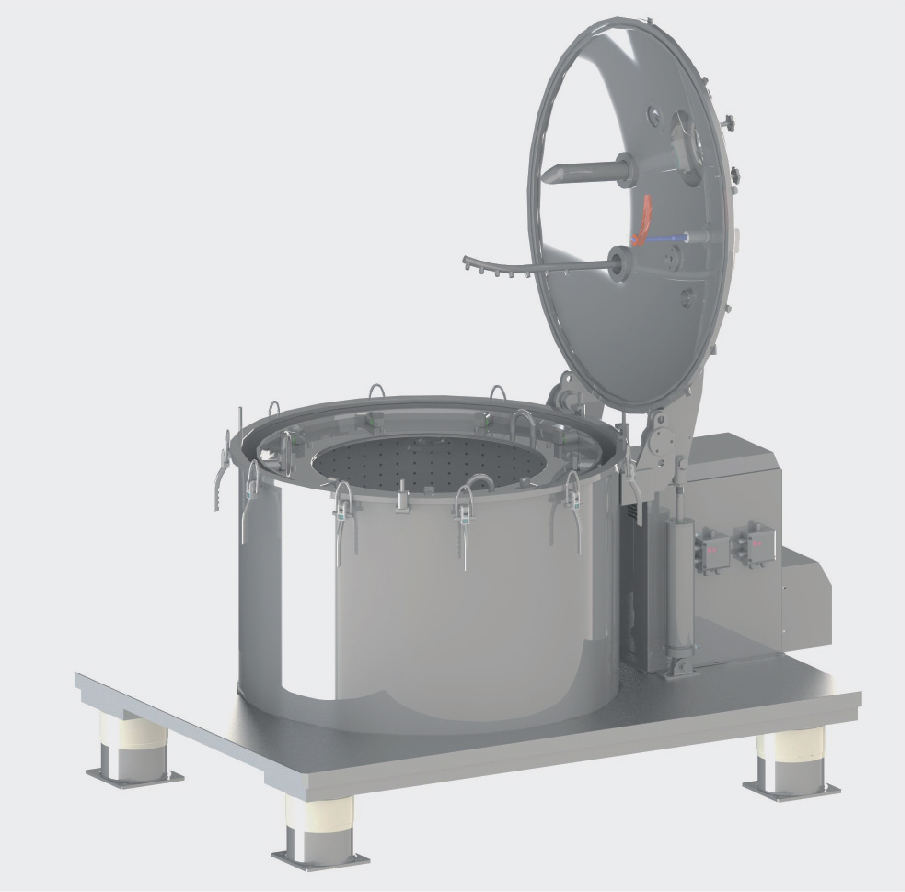

PSD as the Top discharge form of platform Bag-lifting.

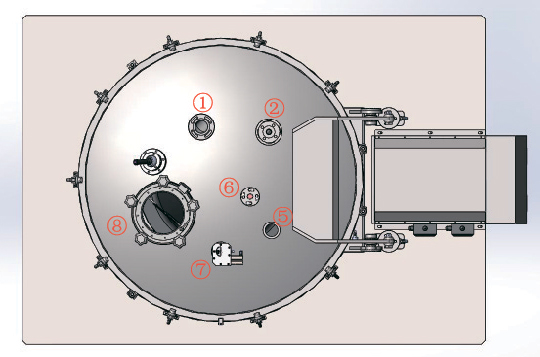

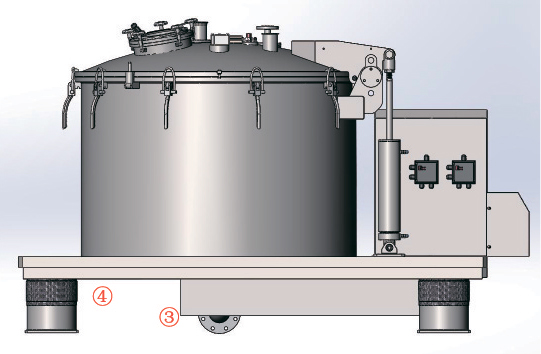

PSD外形簡圖
PSD Outline drawing
接口
1 進料管口
2 洗滌管口
3 出液管口
4 氮氣進氣口
5 排氣口
6 軸封進氣口/排氣口、測壓口
7 料層控制
8 人孔及視鏡清洗
connection interfaces
1 Feed inlet
2 Washing inlet
3 Liquid discharge
4 N2 inlet
5 Exhaust air outlet
6 Shaft seal air inlet/outlet and pressure testing port.
7 Material thickness control
8 Manhole and photoscope cleaning

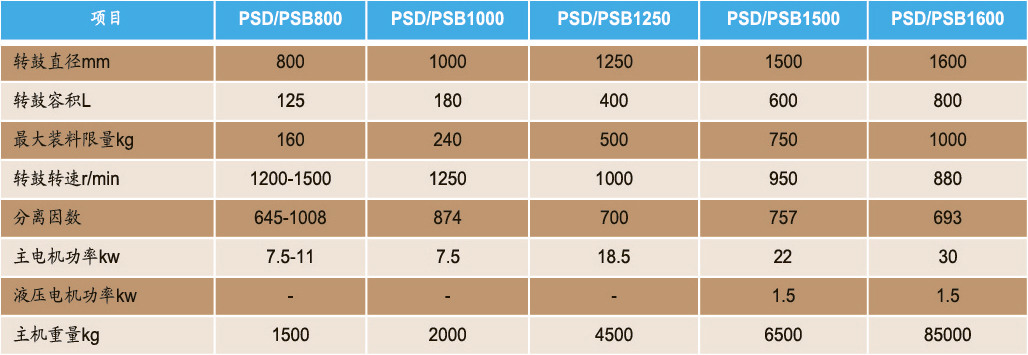

技術參數 Technical parameter
